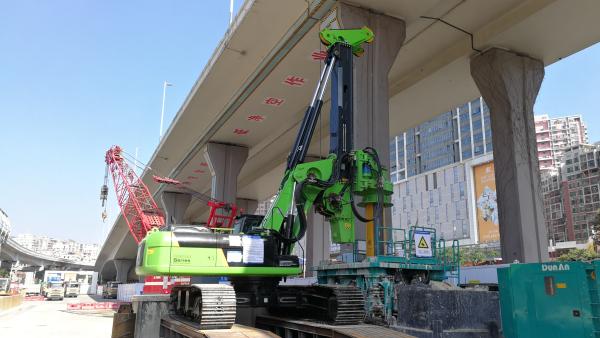

Hydraulic Rotary Pile Drilling Machine KR285C Construction Equipment 320 Kn

  • 1
  • 2
  • 3

Brand Name : Tysim

Model Number : KR285C

Certification : CE/ISO900A

Place of Origin : jiangsu，China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : 45 working days after received your payment

Packaging Details : Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.

Torque : 285

Max. Diameter : 2000/2300 mm

Max. Drilling Depth : 57m(Lock)/ 88 M(Friction Kelly Bar)

Operating Height : 23815

Contact Now

Hydraulic Rotary Pile Drilling Machine KR285C Construction Equipment 320 Kn

​

Type KR285C
Torque 285KN.m
Max. diameter 2000/2300 mm
Max. drilling depth 57 m(Lock)/ 88 m(Friction kelly bar)
Speed of rotation 7~23 rpm
Max. crowd pressure 220 kN
Max. crowd pull 220 kN
Main winch line pull 320 kN
Main winch line speed 80m/min
Auxiliary winch line pull 110 kN
Auxiliary winch line speed 75m/min
Stroke(crowd system) 6000mm
Mast inclination(lateral) ±5°
Mast inclination(forward) 5°
Max. operating pressure 34.3 MPa
Pilot pressure 3.9 MPa
Travel speed 1.5km/h
Traction force 510 kN
Operating height 23815 mm
Operating width 4300mm
Transport height 3550 mm
Transport width 3000 mm
Transport length 17725mm
Overall weight 85 t

​Hydraulic Rotary Pile Drilling Machine KR285C Construction Equipment 320 Kn

Hydraulic Rotary Pile Drilling Machine KR285C Construction Equipment 320 Kn

Hydraulic Rotary Pile Drilling Machine KR285C Construction Equipment 320 Kn

Hydraulic Rotary Pile Drilling Machine KR285C Construction Equipment 320 Kn

Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is an year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
