Width 2900mm 110KN Hydraulic Rotary Piling Rig KR125A Max. Drilling Diameter 1300 Mm Max. Drilling Depth 43 M

TYSIM PILING EQUIPMENT CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Width 2900mm 110KN Hydraulic Rotary Piling Rig KR125A Max. Drilling Diameter 1300 Mm Max. Drilling Depth 43 M

  • 1
  • 2

Brand Name : TYSIM

Model Number : KR125A

Certification : CE,ISO9001

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5 set per month

Delivery Time : 30 working days after recieving the down payment

Packaging Details : Overall transport; Packaged in one flat rack.

Max. torque : 125 kN.m

Max. drilling diameter : 1300mm

Max. drilling depth : 43 m

Speed of rotation : 8~30 rpm

Max. cylinder stroke : 3200 mm

Main winch line speed : 78 m/min

Main winch pull force : 110 KN

Max. operating height : 14990 mm

Max. operating width : 2900 mm

Max. transport weight : 35 t

Transport size : 13720mm*2900mm*3510mm

Contact Now

110KN Main Winch Pull Force KR125A Rotary Piling Rig for 37m Interlocking Kelly Bar Bored Piles Rig

Technical Specification
KR125A rotary drilling rig
Torque 125 kN.m
Max. diameter 1300 mm
Max. drilling depth 37 m(standard)/43 m(optional)
Speed of rotation 8~30 rpm
Max. crowd pressure 100 kN
Max. crowd pull 150 kN
Main winch line pull 110 kN
Main winch line speed 78 m/min
Auxiliary winch line pull 60 kN
Auxiliary winch line speed 60 m/min
Stroke(crowd system) 3200 mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 34.3 MPa
Pilot pressure 3.9 MPa
Travel speed 2.8 km/h
Traction force 204kN
Operating height 15350 mm
Operating width 2990 mm
Transport height 3500 mm
Transport width 2990 mm
Transport length 13970 mm
Overall weight 35 t
Engine
Model Cummins B5.9-C
Cylinder number*diameter*Stroke(mm) 6*102*120
Displacement 5.9
Rated Power(kW/rpm) 112/1950
Max. Torque(N.m/rmp) 614/1500
Kelly Bar
Type Interlocking Friction
Section*length 4*10000(standard) 5*9500(optional)
Depth 37m 45m

product photo

Width 2900mm 110KN Hydraulic Rotary Piling Rig KR125A Max. Drilling Diameter 1300 Mm Max. Drilling Depth 43 M

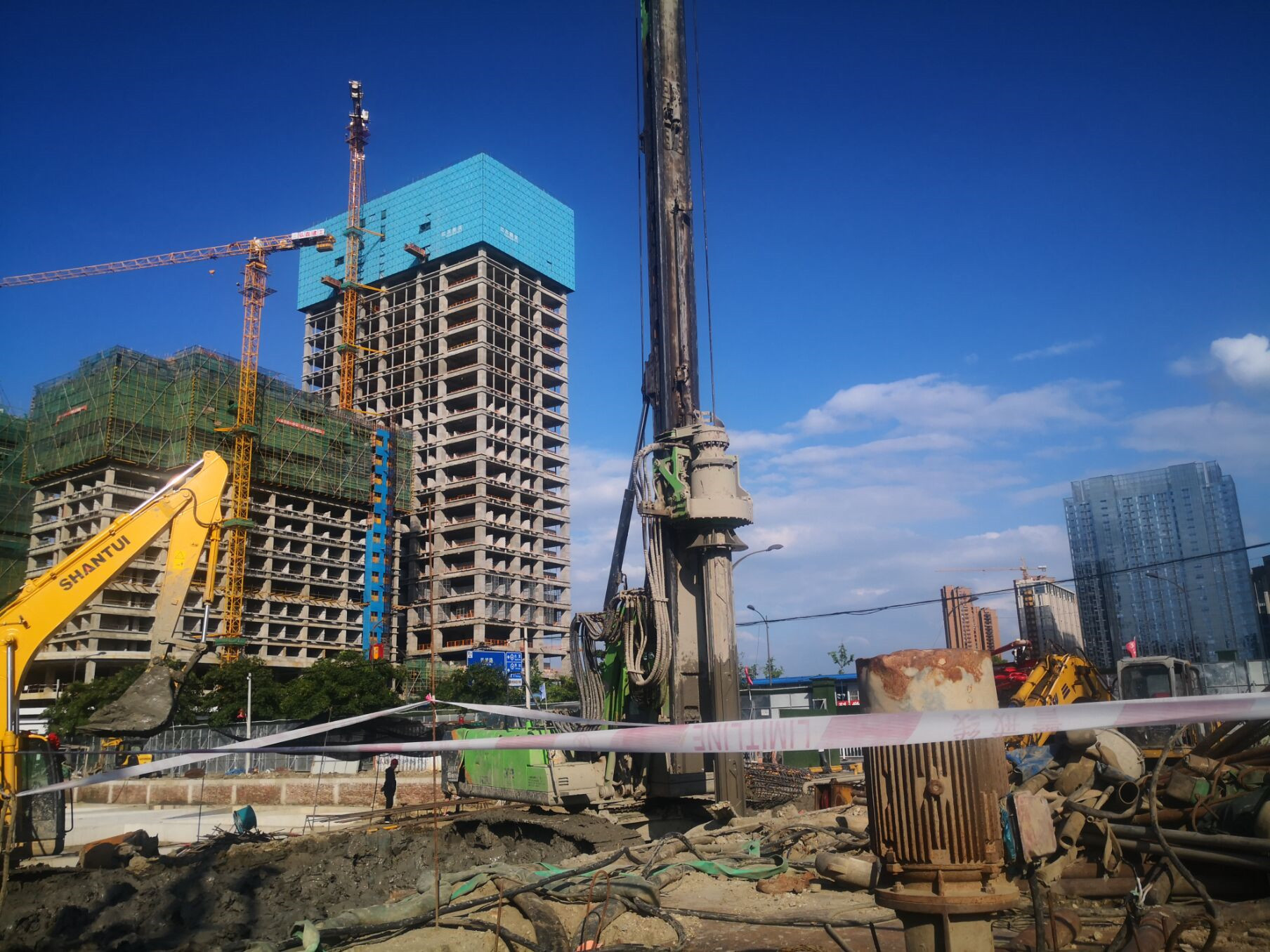

construction photos

Width 2900mm 110KN Hydraulic Rotary Piling Rig KR125A Max. Drilling Diameter 1300 Mm Max. Drilling Depth 43 M

Company introduction

TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.

KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
